Description

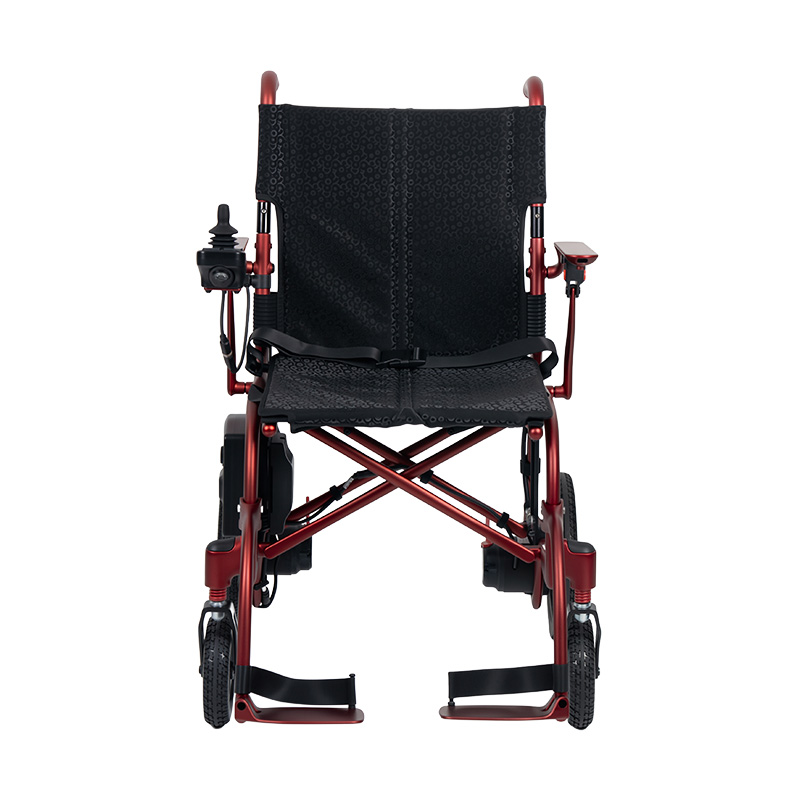

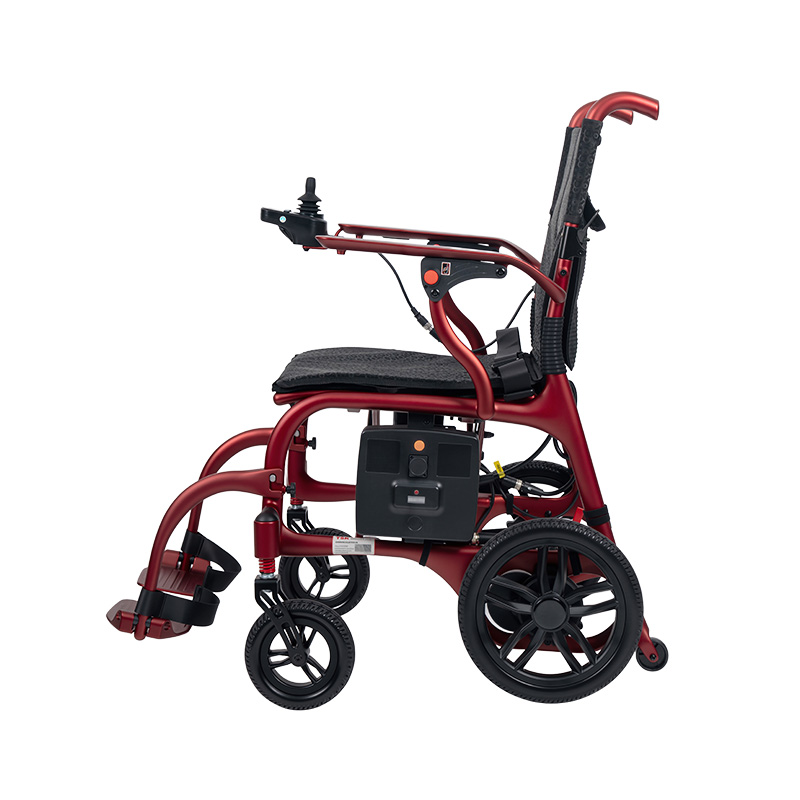

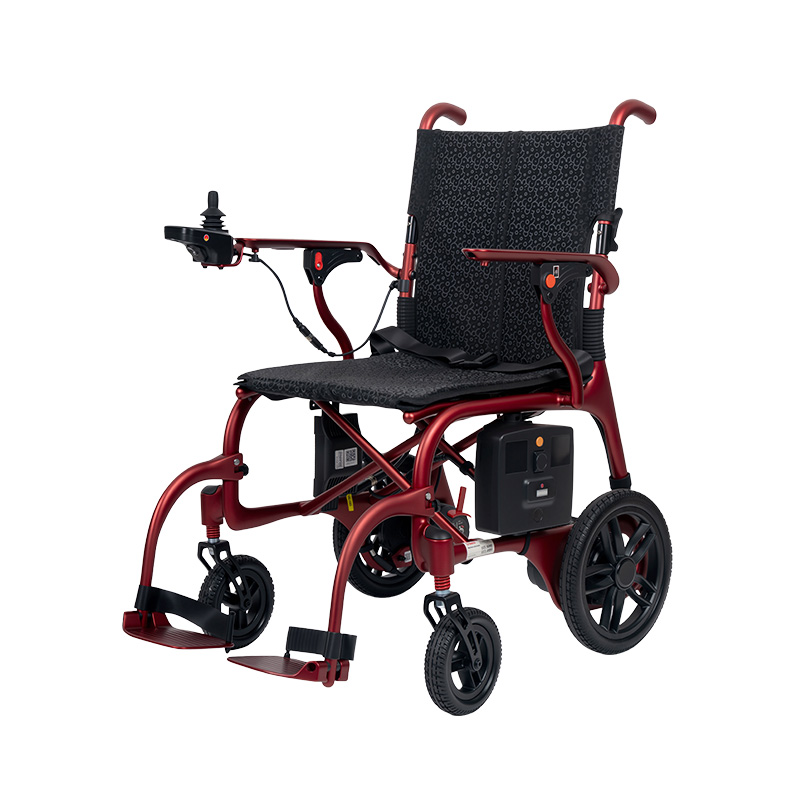

All Carbon Fiber Electric Ultra-Light Wheelchair YSE144
(Specifications and components can be customized)
Specifications:
- Seat Width: 41 cm
- Seat Depth: 40 cm
- Seat Height: 49 cm
- Backrest Height: 40 cm
- Armrest Height: 22 cm
- Footrest Clearance from Ground: 12 cm
- Product Dimensions: 85 × 60 × 90 cm
- Folded Dimensions: 63 × 26 × 70 cm
- Front Wheel: 6.5-inch PU wheels
- Rear Wheel: 12-inch PU wheels
- Net Weight / Gross Weight: 12 kg (excluding battery) / 15 kg
- Frame Material: Carbon fiber
- Maximum Load Capacity: 130 kg
- Package Dimensions: 64 × 27 × 75 cm
Performance:
- Charging Time: 4–6 hours
- Driving Range: 10 km
- Maximum Speed: 4.5 km/h
- Climbing Ability: 3°
- Motor: 2 × 150W brushless motors
- Battery: 24V 6Ah lithium battery (1.5 kg)
- Brake Type: Electromagnetic brake
- Braking Distance: ≤600 mm
- Obstacle-Crossing Height: ≤25 mm
- Cushion Color: Black

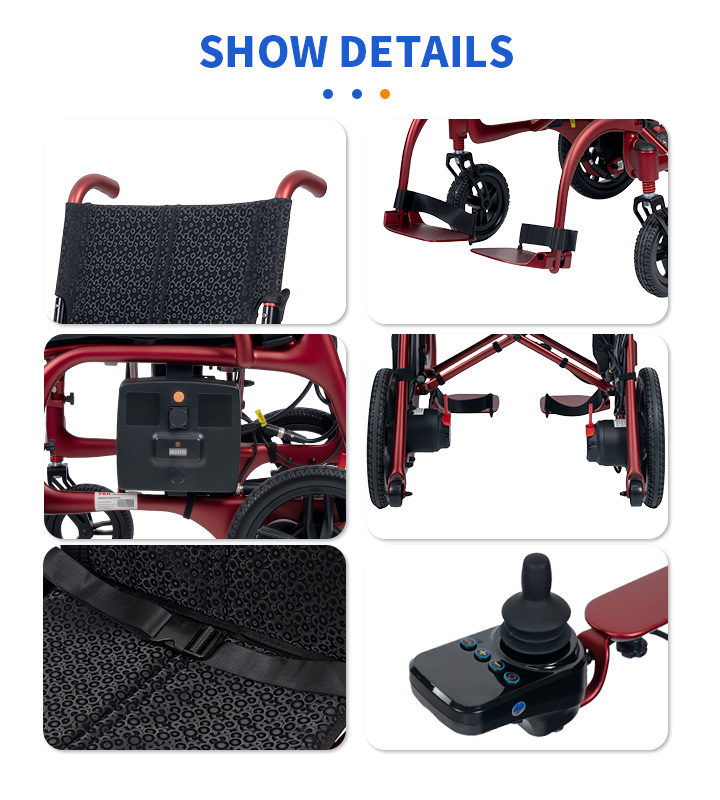

Product Features:
- Suitable for travel and daily mobility.

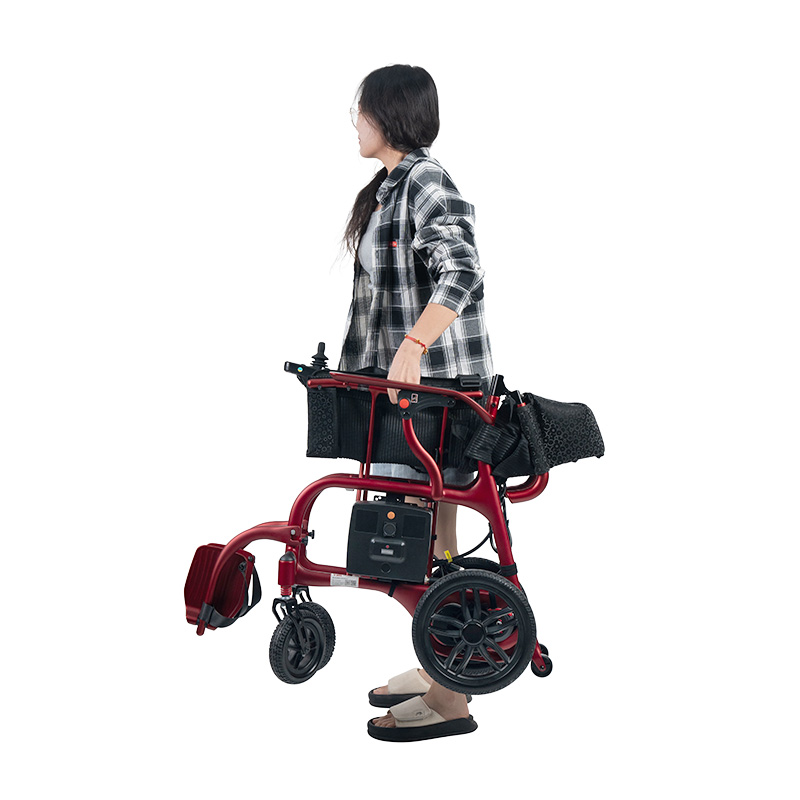

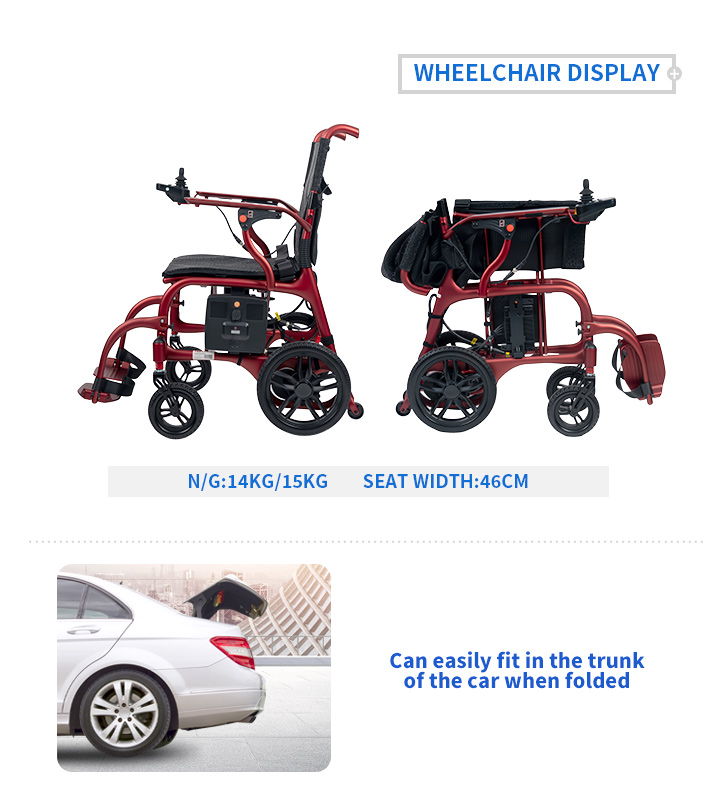

- Lightweight foldable design for easy carrying and storage.
- Full carbon fiber frame with magnesium alloy wheel hubs.
- Flip-up armrests for convenient access and transfers.
- Brushless motors and electromagnetic braking system for smooth and safe operation.
- High-strength nylon mesh breathable seat cushion for enhanced comfort.
